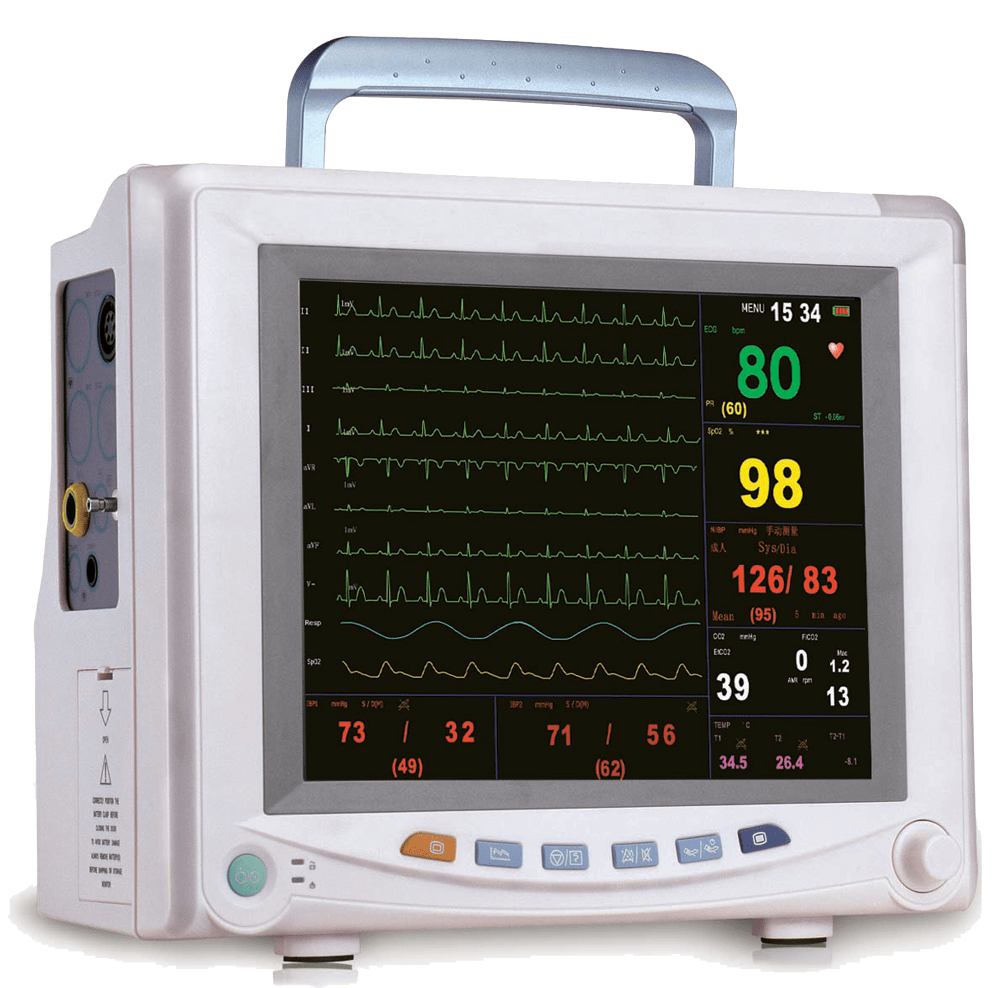

JPEX 10.4″ Multi-Parameter Monitor

Dimension and Weight Dimension: 12.5″ (W) x10.4″ (H) x 6″(D)
Weight: 10lbs

Standard Configuration EKG/Heart Rate/Respiration (3-lead or 5-lead), NIBP, SpO2/Pulse Rate, Temperature, EtCO2 sensor socket ready, Lithium Battery

Option
Built-in thermal recorder, EtCO2 module (Respirnoics EtCO2 LoFlo Sidestream or Capnostat 5 Mainstream), 2-channel IBP, Nellcor SpO2, 12-lead EKG

Specifications:

[EKG]
EKG Input: 3- or 5-lead, 12-lead EKG input (option)
EKG Lead: I, II, III, aVR, aVL, aVF, V, V1-V6 (option)
Gain Choice: AUTO, 0.25x, 0.5x, 1.0x, 2.0x, 4.0x
Scanning Speed: 12.5mm/s, 25mm/s, 50mm/s
Heart Rate Range:
3- or 5-lead EKG module – 10-350 bpm
12-lead ECG module – 25-254bpm

Frequency Response:
3- or 5-lead EKG module – MON 0.5-40Hz, OPS 1-25Hz
12-lead EKG module – MON 0.5-25Hz, OPS 1-15Hz

[NIBP]
Measurement Method: Automatic oscillometry
Patient Types: Adults/Pediatrics/Neonate
Measurement Parameters: Systolic, Mean, Diastolic
Measurement Range: 10-270mmHg
Units of Measurement: mmHg/Kpa
Accuracy:
Static – ±2% or ±3 mmHg, whichever is greater
Clinical – ±5 mmHg average error, 8 mmHg standard deviation

[Pulse Rate/SpO2]
Display: Digital and PLETH waveform
Measurement Range: 0-100% Resolution: 1%
Pulse Rate Range: 25-250BPM Accuracy: ±1% or ±1 bpm, whichever is greater
Resolution: 1BPM

[Temperature]
Measurement range: 25.0–45.0°C
Accuracy: ±0.1°C
Unit: Celsius (°C), Fahrenheit (ºF)

[Respiration]
Measurement Method: Impedance variation between RA-LL (R-F)
Measurement Range: 0-150 rpm Accuracy: ±1rpm
Resolution: 1 rpm

[CO2 (Optional)]
Measurement Type: Sidestream/Mainstream
Measurement Range: 0%-10.0%
Accuracy: ±2mmHg

Power Requirements 100-250VAC, 50/60 Hz

Optional Components (Call for details)

• LoFlo Sidestream EtCO2
• Nellcor SPO2 Module w/ Sensor
• Masimo SPO2 Module w/ Sensor
• 12-Lead ECG Module
• IBP Module
• Mobile Trolly

Additonal Cuffs (Call for details)

• V-Lock Cuff – Newborn, 6 cm to 11 cm (CUFF-NEO)
• V-Lock Cuff – Infant, 10 cm to 19 cm (CUFF-INF)
• V-Lock Cuff – Child, 18 cm to 26 cm (CUFF-PED)
• V-Lock Cuff – Adult, 25 cm to 35 cm (CUFF-ADU)
• V-Lock Cuff – Large Arm, 33 cm to 47 cm (CUFF-LGA)
• V-Lock Cuff – Thigh, 46 cm to 66 cm (CUFF-THG)
