3M Littmann Digital Stethoscope


A new class of clarity..

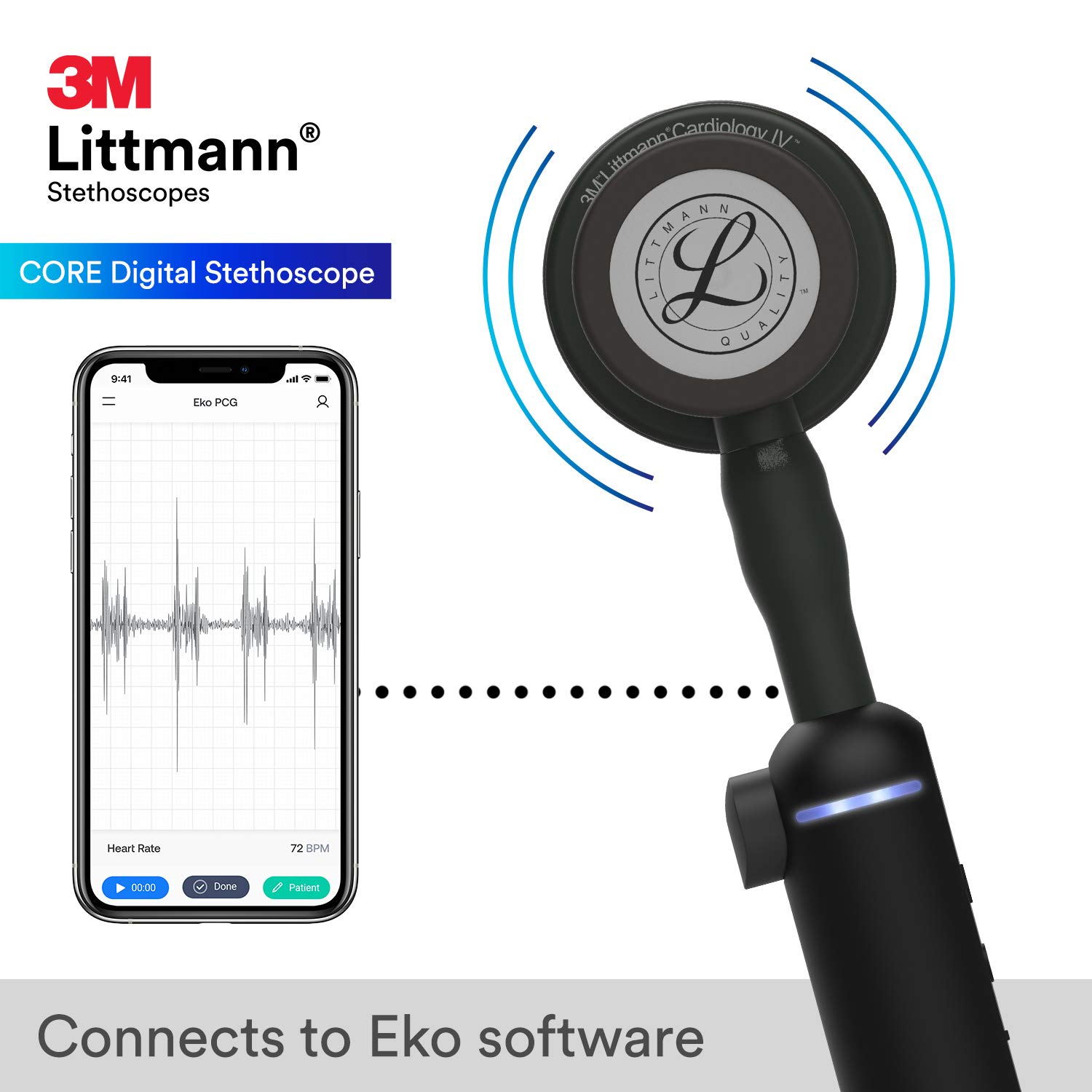

The 3M™ Littmann® CORE Digital Stethoscope features the outstanding acoustics, comfort, and quality of a Littmann cardiology-grade stethoscope enhanced by powerful digital technology. Features like up to 40x amplification and active noise cancellation can help you auscultate with greater confidence. The 3M Littmann CORE Stethoscope connects with Eko software on a smart device2 to visualize, record, and share data.

Take listening to a whole new level..

The FDA-cleared 3M Littmann CORE Stethoscope toggles between analog and amplified listening modes so you can listen how you want to during assessments. Tunable diaphragm technology—a 3M invention—lets you hear different frequency sounds by simply adjusting the pressure on the chest piece. Hold the chest piece with light pressure on the patient to hear low-frequency sounds; press a little more to hear higher frequency sounds. Soft-sealing ear tips conform to individual ears for optimal comfort and excellent sound occlusion.

The 3M Littmann CORE Stethoscope works with Eko software on iOS and Android devices, giving you a HIPAA-compliant means to save and annotate 15, 30, 60, or 120-second recordings in a secure dashboard. Create a library of heart sounds to monitor the progressions of a disease or for education, and securely share recordings with colleagues. The 3M Littmann CORE Stethoscope can be used with Eko Artificial Intelligence to aid in the detection of murmurs (AI purchased separately).

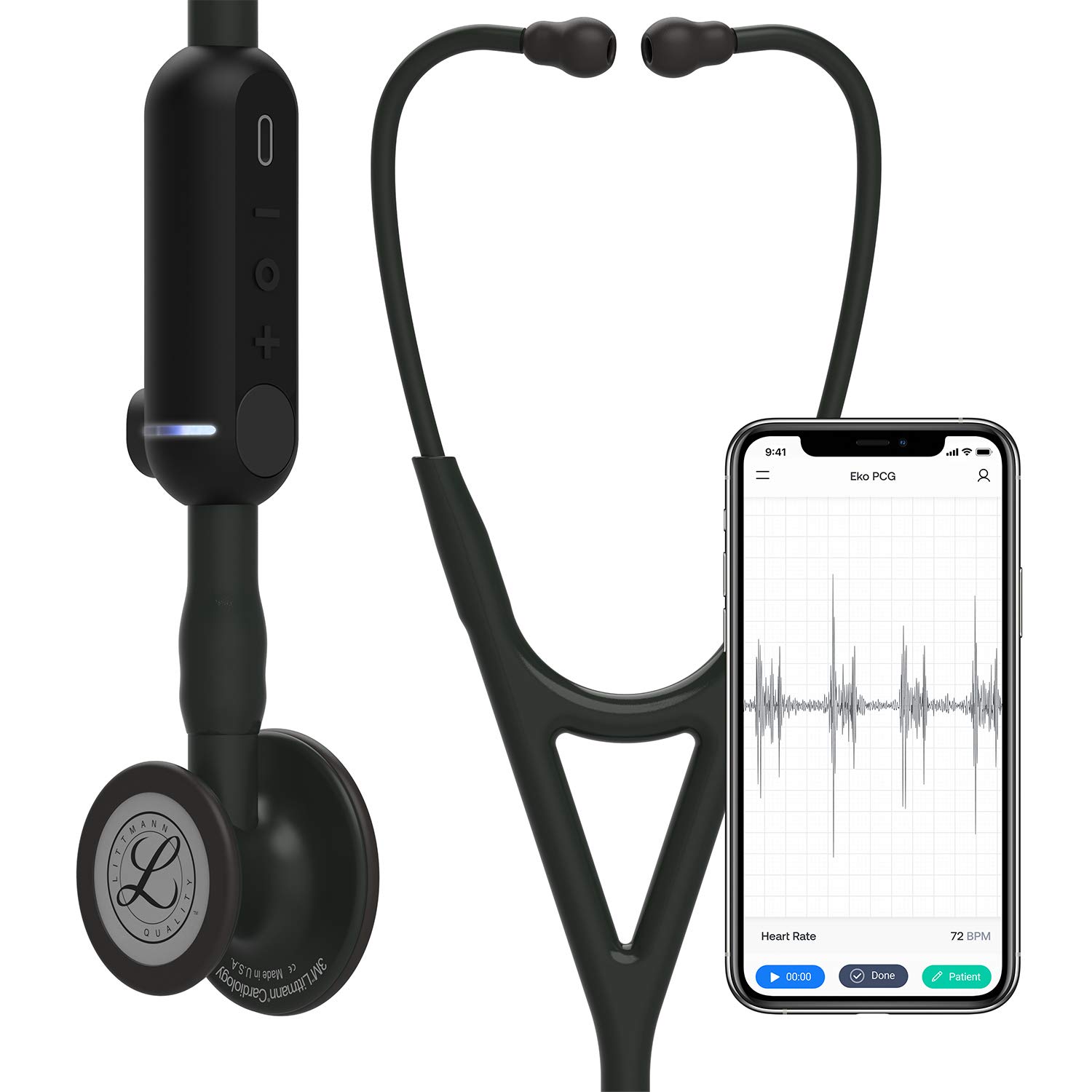

The 3M Littmann CORE Digital Stethoscope is pre-assembled with a CORE Digital Attachment and a 3M Littmann Cardiology IV Stethoscope. Please visit the respective User Manuals for instructions for use.

Features and Benefits:

  • Connects to Eko software on iOS and Android devices to visualize and share heart sound waveforms

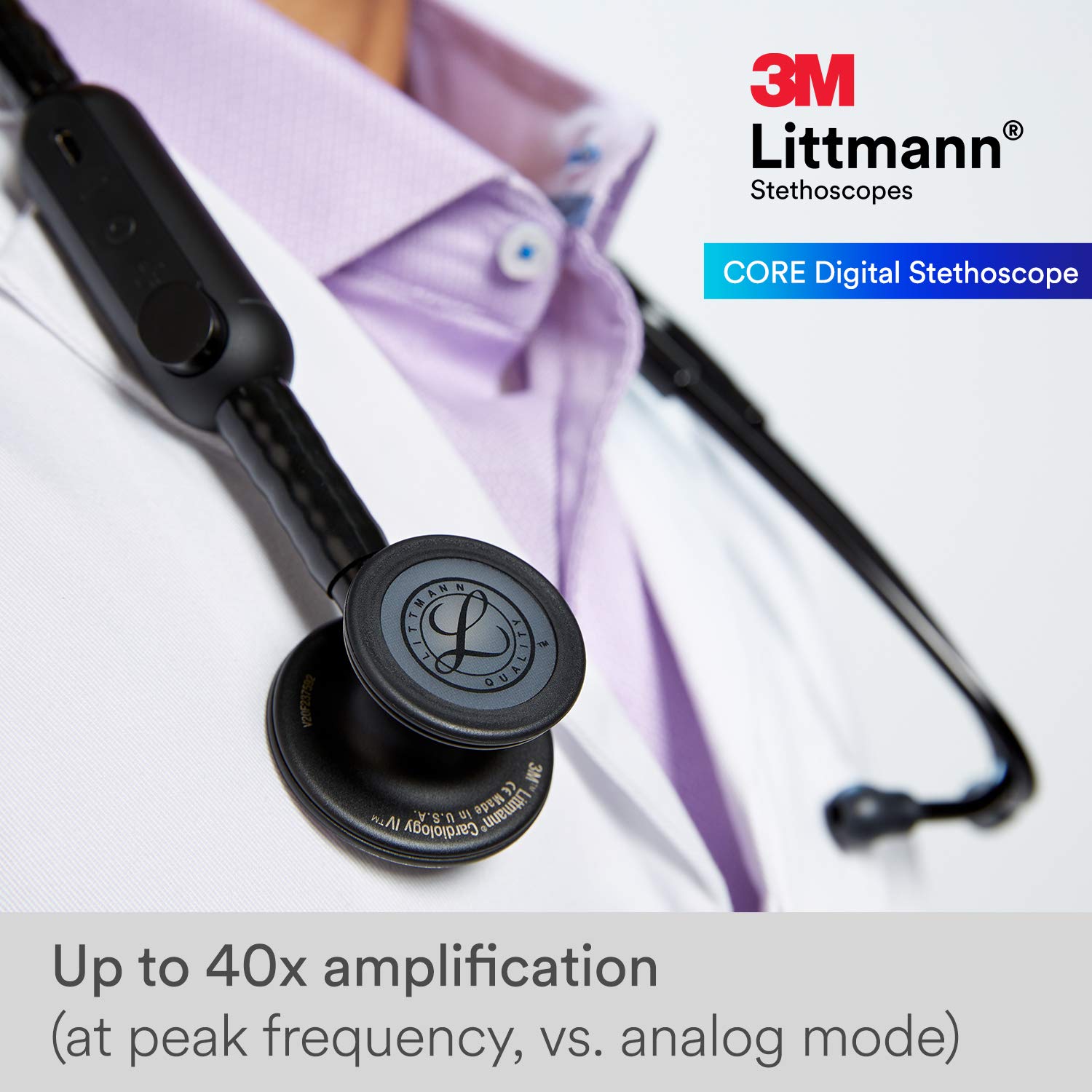

  • Up to 40x amplification (at peak frequency, vs. analog mode)
  • Active noise cancellation reduces unwanted background sounds
  • Toggle between analog and amplified listening modes
  • Soft-sealing ear tips provide an excellent acoustic seal and comfortable fit
  • Tunable, dual-sided stainless steel chest piece with open or closed bell
  • Designed for use with adult and pediatric patients
  • FDA-cleared and HIPAA compliant

Materials Included:

  • 3M™ Littmann® CORE Digital Stethoscope
  • User Manual
  • Smart Phone NOT Included
Purchase this product now and earn 335 Loyalty Points!
SKU: MMM-8480 Categories: ,


Technical Specifications

  • Application: Cardiology/High Performance
  • Binaural Construction: Double Lumen
  • Chestpiece Finish: Black
  • Chestpiece Technology: Double-Sided
  • Chestpiece Weight: 3.1 Ounce
  • Chestpiece Weight (Metric): 87 g
  • Diaphragm Diameter (Metric): 4.3 cm
  • Diaphragm Material: Epoxy/Fiberglass
  • Diaphragm Type: Tunable, single-piece
  • Eartip Type: Soft Sealing
  • Extra Eartips: Yes
  • Headset Material: Wide diameter aerospace alloy / Anodized aluminum
  • Model: CORE
  • Net Weight (Metric): 232 g
  • Occupation: Anesthesiologist, Cardiologist, Emergency Physician, EMT/EMS, Family Practitioner, Internist, Medical Student, Nurse, Pediatrician, Physician, Respiratory Specialist, Teacher/Professor/Instructor
  • Performance: 10
  • Product Color: Black
  • Small Diaphragm Diameter: 1.3 in
  • Small Diaphragm Diameter (Metric): 3.3 cm
  • Special Adaptors: No
  • Tube Color: Black

Warranty Information

  • 2-Year Warranty

Additional information

Weight 2 lbs
Dimensions 12 × 8 × 3 in
