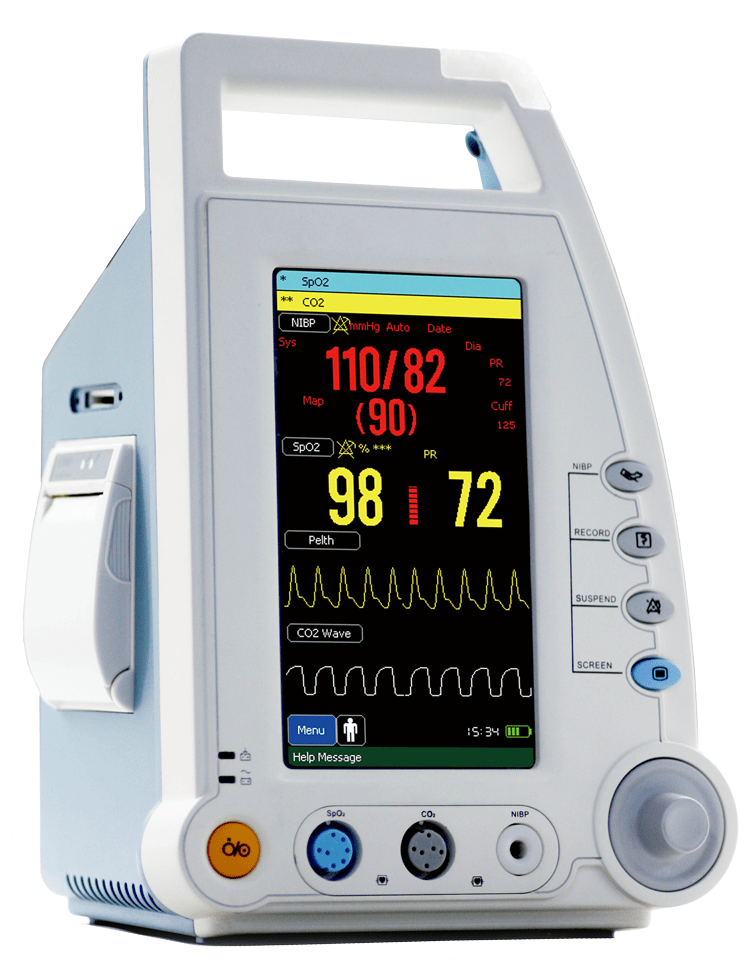

JPEX 3 Parameter Vital Signs Monitor

JPEX 3 Parameter Vital Signs Monitor

Price range: $1,215.00 through $2,310.00

Comes with;

  • SpO2
  • NIBP
  • HR
  • Pulse waveform
  • Audio and visual comprehensive alarm with 3 levels of alarm events
  • Built-in rechargeable battery
  • Thermal Printer
  • Adult BP Cuff. ( Other sizes available)

To place in the cart, please select either TEMP or CO2 option. This monitor does not allow for BOTH temp and capnography. *You must pick one option.*

**If you choose “CO2 Ready” the monitor will come with the CO2 port ONLY. This will make the monitor ready for the CO2 module if you choose to purchase it separately in the future.**

***In-Stock and Ships within 1-2 business days after ordering. For express shipping, units will be shipped same day if order by 12 pm CST.

Earn up to 2310 Loyalty Points.

SKU: N/A Categories: , Tags: , , , , ,

Description

Standard Configuration:

  • SpO2
  • HR
  • Blood Pressure
  • Thermal Printer

Features:

  • 7″ Color Anti-glareĀ Screen
  • Resistance to high electromagnetic power and is protected against defibrillation effects
  • Large font display for distant visibility
  • User-friendly operating user interface with feature-rich popup menus, dialogue boxes and rotary mouse.
  • SpO2 technology offers anti-motion and anti-low perfusion functions
  • Audio and visual comprehensive alarm with configurable vital sign limit settings.
  • Up to 960 hours of trend data storage

Dimension and Weight:
Dimension: 6.3″ (W) x10.2″ (H) x 5″(D)
Weight: 11 lbs
Warranty: 2 Years (parts and labor) for the main unit, all accessories 6 Months

Specifications:

[NIBP]
Measurement Method: Automatic oscillometry
Patient Types: Adults/Pediatrics/Neonate
Measurement Parameters: Systolic, Mean, Diastolic
Measurement Range: 10-270mmHg
Units of Measurement: mmHg/Kpa
Accuracy:
Static – Ā±2% or Ā±3 mmHg, whichever is greater
Clinical – Ā±5 mmHg average error, <=8 mmHg standard deviation

[Pulse Rate/SpO2]
Display: Digital and PLETH waveform
Measurement Range: 0-100% Resolution: 1%
Pulse Rate Range: 25-255BPM Accuracy: Ā±1% or Ā±1 bpm, whichever is greater
Resolution: 1BPM

[Power Requirements]Ā AC:100-240V, 50/60 Hz, 70VA

Additional information

Weight 8 lbs
Dimensions 8 × 8 × 8 in
Select Monitor Configuration

Temperature, CO2 Ready, Sidestream Capnography, Mainstream Capnography
